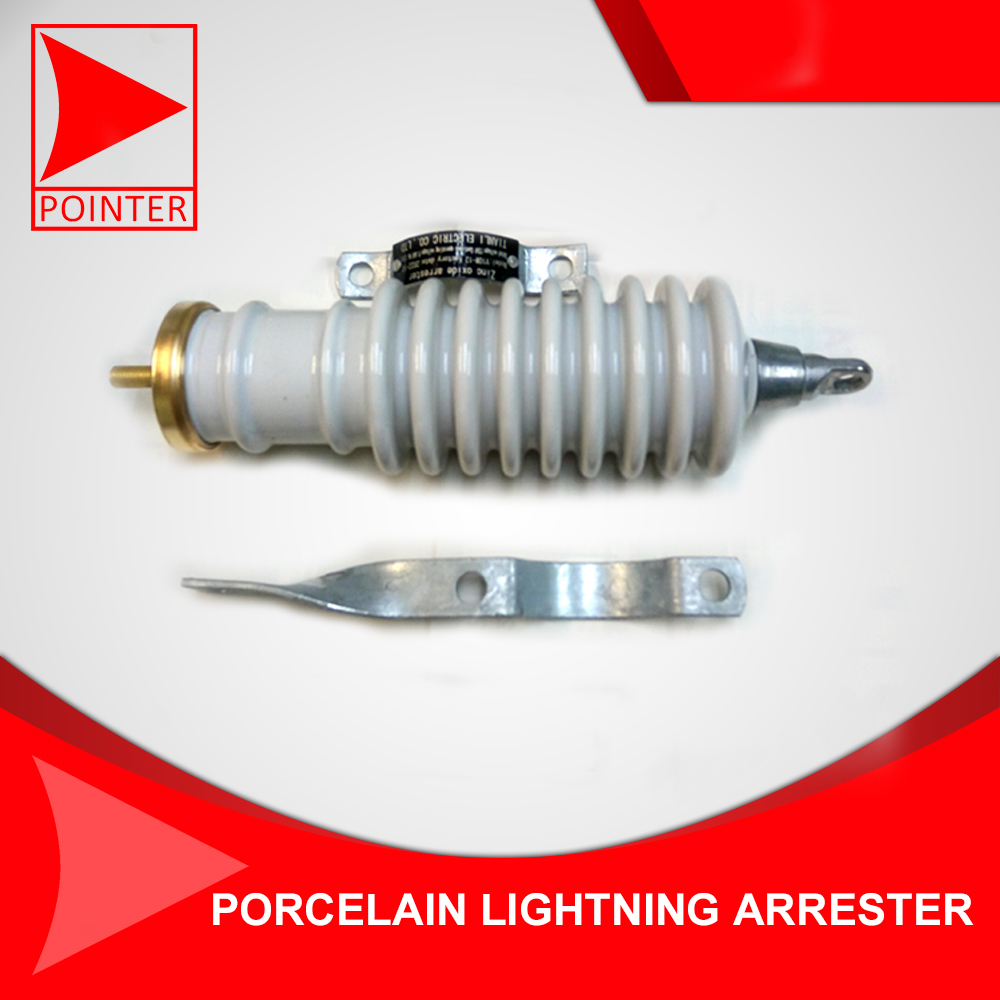

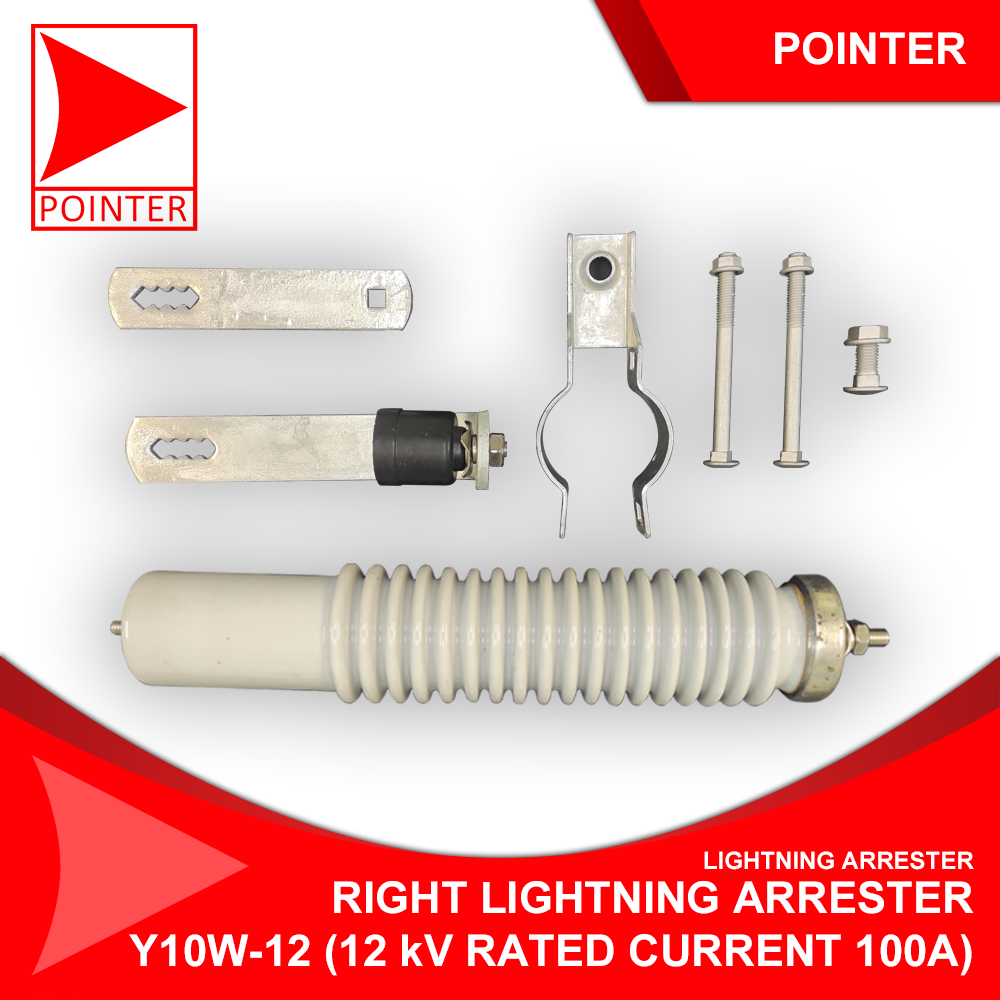

RIGHT LIGHTNING ARRESTER Y10W-12
RATED VOLTAGE: 12kV
MCOV (kV): 10.20
RESIDUAL VOLTAGE (kV) POWER FREQUENCY: 21
RESIDUAL VOLTAGE (kV) 1.2/50μ s LIGHTNING IMPULSE
8/20μ s LIGHTNING IMPULSE RESIDUAL VOLTAGE (kV): 36
2000μ s SQUARE WAVE IMPULSE CURRENT WITHSTAND: 1
4/10μ s HIGH CURRENT IMPULSE (kV): 100
RIGHT LIGHTNING ARRESTER Y10W-12
RATED VOLTAGE: 12kV
MCOV (kV): 10.20
RESIDUAL VOLTAGE (kV) POWER FREQUENCY: 21
RESIDUAL VOLTAGE (kV) 1.2/50μ s LIGHTNING IMPULSE
8/20μ s LIGHTNING IMPULSE RESIDUAL VOLTAGE (kV): 36
2000μ s SQUARE WAVE IMPULSE CURRENT WITHSTAND: 1
4/10μ s HIGH CURRENT IMPULSE (kV): 100
